Rocket M5: 5GHz High Power 2x2 MIMO AirMax TDMA BaseStation
The Rocket is a rugged, high-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PtMP Airmax base-station applications.

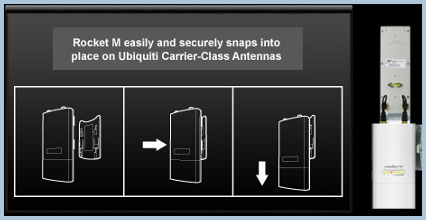

Rocket M Seamlessly Integrates with AirMax BaseStation and Rocket Antennas
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
| Specifications: |
| Processor: |
Atheros MIPS 24KC, 400MHz |
| Memory: |
64MB SDRAM |
| Interface: |
10/100 Mbps RJ-45 Ethernet port |
| Transmitted Wireless Power: |
27 dBm (Max.) |
| RF Connectors: |
2x RP-SMA (waterproof) |
| Mounting: |
Connects directly onto AirMax antenna
Pole mounting kit also included |
| Power supply: |
24V, 1A PoE supply (included) |
| Dimensions: |
160 x 80 x 30 mm |
| Weight: |
0.5 kg |
| Operating Temperature: |
-30°C - 75°C |
| Operating Humidity: |
5% - 95% |
|
 Click here to download the datasheet for this product.
 |
